出售御彩石喷涂线

Sale of Yucai Stone Spraying Lines

（亚士重庆工厂2条+亚士石家庄工厂2条）

(2 lines from ASIAE Chongqing Factory + 2 lines from ASIAE Shijiazhuang Factory)

本产线是御彩石产品的核心工艺单元，集自动化、智能化与绿色环保于一身，以尖端科技保障卓越品质与高效产出。整线共配置26台设备，总装机功率约120kw，蒸汽消耗量仅0.5吨，是高效与节能的行业标杆之作。

This production line is the core process unit for Yucai Stone products, integrating automation, intelligence, and green environmental protection, and ensuring excellent quality and efficient output with cutting-edge technology. The entire line is equipped with 26 sets of equipment, with a total installed power of approximately 120kw and a steam consumption of only 0.5 tons, making it an industry benchmark for efficiency and energy conservation.

智能无人操作：龙门机械臂自动完成上下料、对齐、除尘，不合格品自动剔除，实现生产全程智能化。

Intelligent unmanned operation: Gantry robotic arms automatically complete loading, unloading, alignment, and dust removal, and automatically reject unqualified products, realizing full intelligent production.

精准喷涂省原料：6-8枪头360°正压喷涂，配合微电脑精密控制，喷涂均匀细腻，原料利用率高，品质卓越。

Precise spraying to save raw materials: 6-8 spray guns with 360° positive pressure spraying, combined with microcomputer precision control, ensure uniform and delicate spraying, high raw material utilization rate, and excellent quality.

高效干燥保品质：双工位喷涂与“蒸汽+强风烘道”预干燥设计，保证初凝后进入全行业最先进立体烘房，确保产品快速、彻底干燥，品质稳定。

Efficient drying to ensure quality: The design of double-station spraying and "steam + strong air drying channel" pre-drying ensures that after initial setting, the products enter the most advanced three-dimensional drying room in the industry, ensuring rapid and thorough drying of products and stable quality.

省人节能效率高：每条线仅配4人（可操作双条产线），支持24小时连续运转。线速12m-30m/min(4张-7张板），单线年产量突破300万㎡，是实现高效扩张与旧线升级的优选。

Labor-saving, energy-saving, and high-efficiency: Each line is equipped with only 4 people (who can operate two lines) and supports 24-hour continuous operation. The line speed is 12m-30m/min (4-7 boards), and the annual output of a single line exceeds 3 million㎡, making it the preferred choice for efficient expansion and old line upgrading.

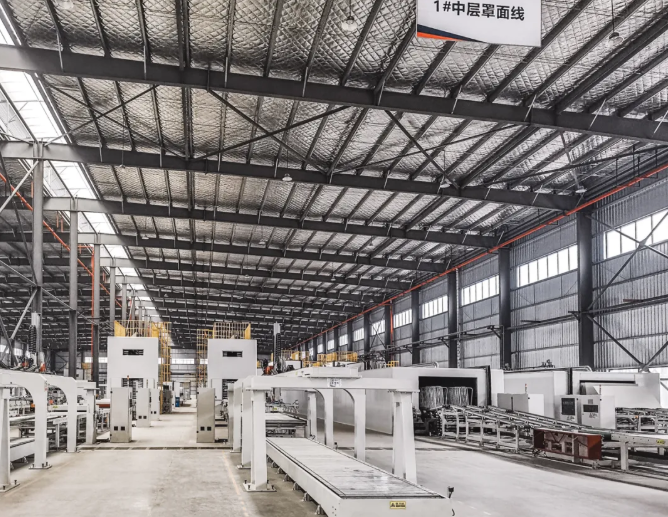

出售中层/罩面辊涂线

Sale of Middle Layer/Topcoat Roller Coating Lines

（亚士重庆工厂2条+亚士石家庄工厂2条）

(2 lines from ASIAE Chongqing Factory + 2 lines from ASIAE Shijiazhuang Factory)

本产线是一款多功能一体化解决方案，专为中层辊涂与罩面覆膜工艺量身打造，是提升效率、降低成本的理想选择。整线集成32台设备，总功率约120kw，蒸汽耗量约0.3吨。

This production line is a multi-functional integrated solution, tailor-made for middle layer roller coating and topcoat film covering processes, and is an ideal choice for improving efficiency and reducing costs. The entire line integrates 32 sets of equipment, with a total power of approximately 120kw and a steam consumption of approximately 0.3 tons.

柔性化生产：一线兼备中层与罩面双重功能，柔性切换，满足多样化生产需求。

Flexible production: One line has both middle layer and topcoat functions, with flexible switching to meet diversified production needs.

智能自动化：龙门机械臂全自动上下料、对齐、除尘及不良品剔除，实现智能化生产管理。

Intelligent automation: Gantry robotic arms automatically load and unload, align, remove dust, and reject defective products, realizing intelligent production management.

精密控制：四道双逆辊涂配以微电脑精密供料，涂布均匀高效，有效节省原料。

Precise control: Four double reverse roller coatings with microcomputer precision feeding ensure uniform and efficient coating, effectively saving raw materials.

环保节能：余料可回收再利用，喷涂废气全部收集并经处理后排放，满足绿色生产要求。

Environmental protection and energy conservation: Residual materials can be recycled and reused, and all spraying waste gas is collected and treated before emission, meeting the requirements of green production.

高效干燥：采用“蒸汽+强风”预烘结合立体烘房系统，温度、风量与烘干时间全程可调，确保涂层初凝至彻底干燥全过程稳定可控。

Efficient drying: Adopting "steam + strong air" pre-drying combined with a three-dimensional drying room system, the temperature, air volume, and drying time can be adjusted throughout the process, ensuring that the entire process from initial setting to thorough drying of the coating is stable and controllable.

持续高产：每条线仅配4人（可操作双条产线），线速12m-30m/min(4张-7张板），单产线年产量突破300万㎡，支持24小时不间断运行。

Continuous high production: Each line is equipped with only 4 people (who can operate two lines), with a line speed of 12m-30m/min (4-7 boards). The annual output of a single production line exceeds 3 million㎡, supporting 24-hour uninterrupted operation.

出售ES/定厚砂辊涂线

Sale of ES/Thickness-Setting Sand Roller Coating Lines

（亚士重庆工厂1条+亚士石家庄工厂1条）

(1 line from ASIAE Chongqing Factory + 1 line from ASIAE Shijiazhuang Factory)

本产线集成“定厚砂光”与“ES渗透”双工艺，一线双能，全面兼顾基材处理与涂层渗透，显著提升产品一致性与表面品质。整线配备33台设备，总功率约200kw，蒸汽消耗仅0.1吨/小时，性能强劲且运行经济。

This production line integrates the dual processes of "thickness-setting sanding" and "ES penetration", with dual functions in one line, comprehensively taking into account substrate treatment and coating penetration, significantly improving product consistency and surface quality. The entire line is equipped with 33 sets of equipment, with a total power of approximately 200kw and a steam consumption of only 0.1 tons per hour, featuring strong performance and economical operation.

智能自动化，精准高效：采用龙门机械臂自动上下板、对位除尘，不良板件自动识别剔除；微电脑精准控制供料压力与流量，涂布均匀省料，品质持续稳定。

Intelligent automation, precise and efficient: Gantry robotic arms are used to automatically load and unload boards, align and remove dust, and automatically identify and reject defective boards; microcomputers precisely control the feeding pressure and flow, ensuring uniform coating, material saving, and stable quality.

重型砂光+双道辊涂，厚薄均匀：配置双工位双砂架重型砂光机，确保基材厚度一致；配合双道正逆辊涂系统，渗透均匀，附着力强。

Heavy-duty sanding + double roller coating, uniform thickness: Equipped with a double-station double sand frame heavy-duty sander to ensure uniform substrate thickness; combined with a double positive and negative roller coating system, it ensures uniform penetration and strong adhesion.

绿色环保，清洁生产：双逆辊可以升降辊涂机，余料可以回改利用，废气全程收集并处理后排放，符合环保规范。

Green environmental protection, clean production: The double reverse rollers allow the roller coater to be lifted and lowered. Residual materials can be recycled and reused, and waste gas is collected and treated throughout the entire process before being discharged, which complies with environmental protection standards.

三段组合干燥，渗透更彻底：采用“UV+红外+强风烘道”三段式干燥系统，精准控制渗透与固化过程，有效提升ES处理品质与效率。

Three-stage combined drying for more thorough penetration: Adopting a three-stage drying system of "UV + infrared + strong air drying channel", it precisely controls the penetration and curing process, effectively improving the quality and efficiency of ES treatment.

持续高产，省人省心：线速高达12m–30m/min（5张–8张板），单线年产能突破800万㎡，支持24小时连续运转。每条线仅需4人操作，可兼顾双线运行，人力成本极优。

Continuous high production, labor-saving and worry-free: The line speed is up to 12m-30m/min (5-8 boards), the annual output of a single line exceeds 8 million㎡, and it supports 24-hour continuous operation. Each line requires only 4 operators, who can also take charge of two lines, resulting in extremely low labor costs.

出售金属漆喷涂线

Sale of Metallic Paint Spraying Line

（亚士重庆工厂1条）

(1 line from ASIAE Chongqing Factory)

本产线专为高端金属漆饰面设计，集自动化、精准化与环保化于一体，以卓越性能实现稳定高效的优质产出。整线配置27台设备，总功率约100kw，蒸汽消耗仅0.4吨/小时，运行成本低，综合效益显著。

This production line is specially designed for high-end metallic paint finishes, integrating automation, precision, and environmental protection, and achieving stable, efficient, and high-quality output with excellent performance. The entire line is equipped with 27 sets of equipment, with a total power of approximately 100kw and a steam consumption of only 0.4 tons per hour, featuring low operating costs and significant comprehensive benefits.

智能自动化，全程无人干预：采用龙门机械臂自动完成上料、定位、除尘工序，不合格产品自动识别与剔除，全面提升生产连贯性与产品一致性。

Intelligent automation with full unmanned intervention: Gantry robotic arms are used to automatically complete the processes of loading, positioning, and dust removal. Unqualified products are automatically identified and rejected, comprehensively improving production continuity and product consistency.

负压喷涂系统，均匀省料：配备4组360°全方位负压喷涂枪头，搭配微电脑精准控制原料压力与流量，喷涂均匀细腻，利用率高，金属质感出众。

Negative pressure spraying system, even and material-saving: Equipped with 4 sets of 360° all-round negative pressure spray gun heads, combined with a microcomputer for precise control of raw material pressure and flow, the spraying is uniform and delicate, with high utilization rate and excellent metallic texture.

双工位喷涂+先进干燥系统：支持双工位同步作业，结合“蒸汽+强风”预烘与立体烘房技术，温控精准，实现涂层快速初凝与彻底干燥，品质更稳定。

Double-station spraying + advanced drying system: Supports double-station synchronous operation, combined with "steam + strong air" pre-drying and three-dimensional drying room technology, with precise temperature control, realizing rapid initial setting and thorough drying of the coating, and more stable quality.

绿色环保，清洁生产：喷涂余料可回收再利用，生产过程中产生的废气全部密闭收集并经专业净化处理，符合环保排放标准，助力企业绿色转型。

Green environmental protection, clean production: Spraying residual materials can be recycled and reused, and all waste gas generated during production is collected in a closed manner and professionally purified before emission, meeting environmental protection emission standards and helping enterprises achieve green transformation.

高效产能，灵活省人：线速达12m–30m/min(3张-5张板），单线年产能超过150万㎡。每条线仅需3人操作，可兼顾双线运行，人效卓越，支持24小时连续生产。

Efficient production capacity, flexible and labor-saving: The line speed reaches 12m-30m/min (3-5 boards), and the annual output of a single line exceeds 1.5 million㎡. Each line requires only 3 operators, who can also take charge of two lines, with excellent labor efficiency and support for 24-hour continuous production.

出售氟碳漆辊涂线

Sale of Fluorocarbon Paint Roller Coating Lines

（亚士重庆工厂1条+亚士石家庄工厂1条）

(1 line from ASIAE Chongqing Factory + 1 line from ASIAE Shijiazhuang Factory)

本产线集补腻、辊涂、覆膜三大功能于一体，实现氟碳漆饰面全流程自动化与精细化生产。全线集成66台设备，总功率约260kw，蒸汽耗量0.7吨/小时，配置完备，性能强劲，专为高端饰面定制，助力企业实现品质与效率双提升。

This production line integrates three functions: putty filling, roller coating, and film covering, realizing full-process automation and refined production of fluorocarbon paint finishes. The entire line integrates 66 sets of equipment, with a total power of approximately 260kw and a steam consumption of 0.7 tons per hour. It is fully equipped with strong performance, specially customized for high-end finishes, helping enterprises achieve both quality and efficiency improvement.

智能操控，全程精准可靠：采用龙门机械臂自动上下料、对位与除尘，不良板件自动识别剔除；微电脑精准控制原料系统，辊涂均匀、用料节省，品质持续稳定。

Intelligent control, full-process precise and reliable: Gantry robotic arms are used to automatically load and unload, align, and remove dust, and automatically identify and reject defective boards; microcomputers precisely control the raw material system, ensuring uniform roller coating, material saving, and stable quality.

绿色生产，环保合规：余料可回收循环使用，生产废气全程密闭收集并经专业处理，洁净排放，符合环保要求，支持企业可持续发展。

Green production, environmental protection compliance: Residual materials can be recycled and reused, and production waste gas is collected in a closed manner throughout the process and professionally treated for clean emission, meeting environmental protection requirements and supporting the sustainable development of enterprises.

五道辊涂+补腻，基处理更扎实：配备双道补腻机与三道单逆辊涂系统，辊机带升降调节，适应不同工艺需求，确保基面平整、涂覆均匀。

Five roller coatings + putty filling, more solid substrate treatment: Equipped with a double putty filling machine and a three single reverse roller coating system, the roller machine is equipped with lifting adjustment to adapt to different process requirements, ensuring a flat substrate surface and uniform coating.

立体烘干技术，干燥更彻底：采用“蒸汽+强风”预烘结合全行业领先立体烘房，实现温度、风量、时长全程可调，保障涂层彻底干燥与优异附着力。

Three-dimensional drying technology for more thorough drying: Adopting "steam + strong air" pre-drying combined with the industry-leading three-dimensional drying room, realizing full adjustment of temperature, air volume, and duration, ensuring thorough drying of the coating and excellent adhesion.

高效产能，人机配合优：线速达12m–30m/min(4张–7张板)，单线年产能超过200万㎡。每条线仅需5人操作，可操作双线运行，支持24小时连续作业，人效出众。

Efficient production capacity with excellent human-machine collaboration: The line speed reaches 12m–30m/min (4–7 boards), and the annual production capacity of a single line exceeds 2 million square meters. Each line only requires 5 operators, who can operate two lines simultaneously, supporting 24-hour continuous operation, with outstanding labor efficiency.

出售全自动复合生产线

Sale of Fully Automatic Composite Production Lines

（亚士重庆工厂2条+亚士石家庄工厂1条）

(2 lines from ASIAE Chongqing Factory + 1 line from ASIAE Shijiazhuang Factory)

本产线配备2条全自动复合生产线，专为岩棉、真金板、EPS、SEPS等复合产品设计，具备高兼容性与稳定性。全线实现日产能1万㎡，年产能达300万㎡，是打造高品质复合板材的理想解决方案。

This production line is equipped with 2 fully automatic composite production lines, specially designed for composite products such as rock wool, real gold boards, EPS, SEPS, etc., with high compatibility and stability. The entire line achieves a daily production capacity of 10,000㎡ and an annual production capacity of 3 million㎡, making it an ideal solution for creating high-quality composite panels.

多材料兼容，生产灵活高效：全面支持岩棉、真金板、EPS、SEPS等常见保温材料的复合作业，适应多样化订单需求，提升产线利用效率。

Multi-material compatibility, flexible and efficient production: Fully supports the composite operations of common thermal insulation materials such as rock wool, real gold boards, EPS, SEPS, etc., adapts to diverse order requirements, and improves production line utilization efficiency.

智能自动化，人机协作顺畅：采用龙门机械臂自动完成上底板、板面及中层材料摆放（除岩棉需人工整理外），全线集成自动涂胶、四边定位、叠板码垛与进出压机流程，实现高效连续生产。

Intelligent automation, smooth human-machine collaboration: Uses gantry robotic arms to automatically place the upper bottom plate, panel surface and middle layer materials (except rock wool which requires manual arrangement). The entire line integrates automatic gluing, four-side positioning, stacking and palletizing, and in-out press processes to achieve efficient continuous production.

精准涂胶系统，粘接强、用料省：微电脑智能控制涂胶量与方式，涂布均匀，粘接效果优异，有效降低用胶成本，提升产品一致性。

Precise gluing system, strong adhesion and material saving: Microcomputer intelligent control of glue amount and method, uniform coating, excellent bonding effect, effectively reducing glue costs and improving product consistency.

复合工艺可控，品质稳定可靠：复合时间与压力参数均可通过微电脑设定，配合废气处理系统，确保生产过程环保可控，成品结构紧密、质量稳定。

Controllable composite process, stable and reliable quality: Composite time and pressure parameters can be set via microcomputer. Equipped with an exhaust gas treatment system, it ensures environmentally friendly and controllable production processes, with finished products having a tight structure and stable quality.

高效产能，灵活省人：产线运行速度达10m–20m/min(3张–5张板)，单线年产能超过200万㎡。仅需4人即可操作，支持双线并行与24小时连续运转，人效比突出。

High-efficiency production capacity, flexible and labor-saving: The production line operating speed reaches 10m–20m/min (3–5 boards), with a single-line annual production capacity exceeding 2 million㎡. Only 4 people are needed to operate it, supporting dual-line parallel operation and 24-hour continuous operation, with an outstanding labor efficiency ratio.
